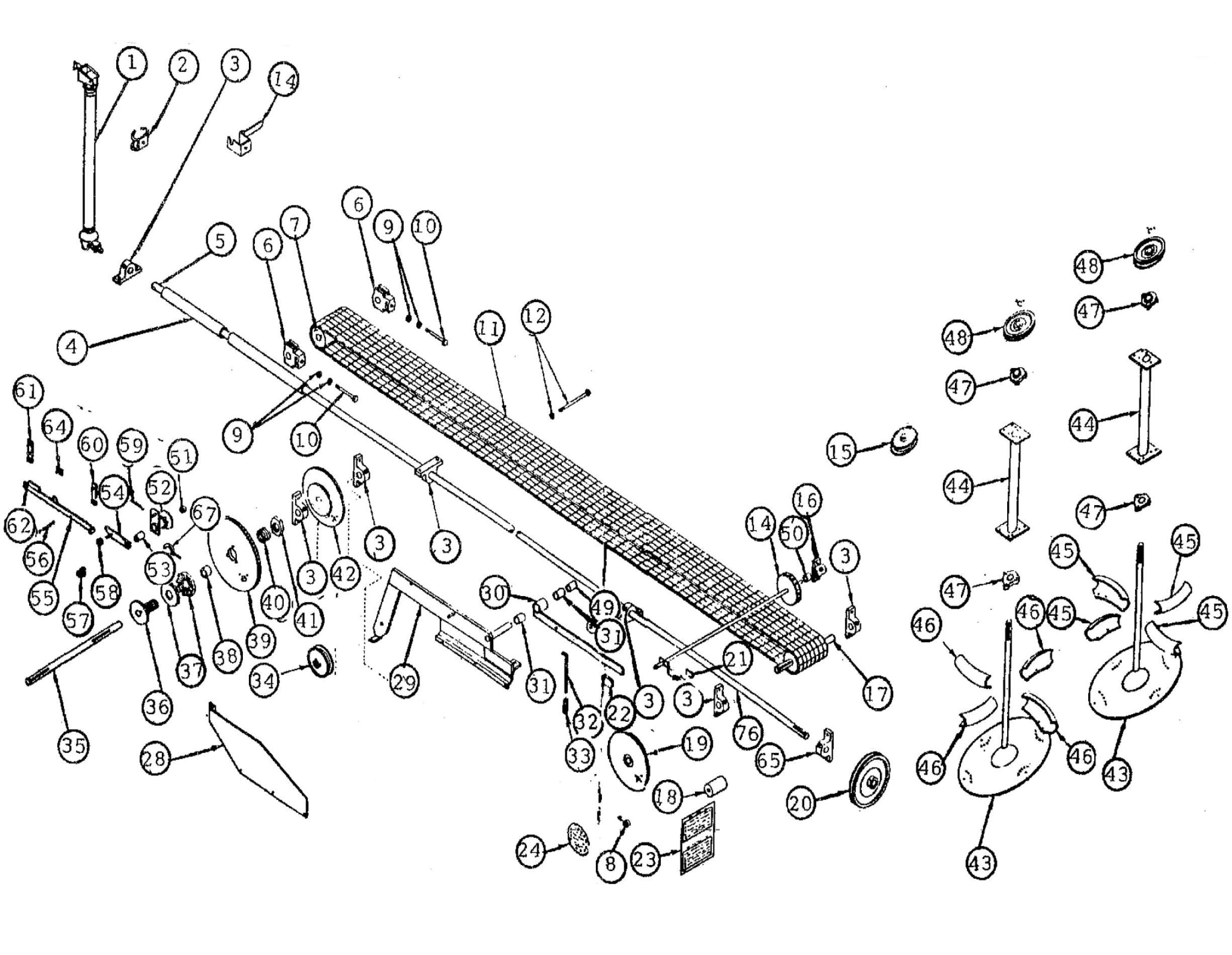

WILLMAR S600 CONVEYOR/SPINNER PARTS
Item #:500-0000061
Manufacturer:
WILLMAR
| No. | Part No. | Item Description | Qty Req. | Price | Qty |
| 1 | 500-0220011 |
540 PTO COMPLETE
|
1 |
431.18
Each
|
|
| 2 | 500-0104921 |
PTO CLAMP 2.75
|
1 |
37.27
Each
|
|
| 3 | 500-0106391 |
SEALED PB BEARING 1"
|
7 |
13.83
Each
|
|
| 4 | 500-0151281 |
PVC LINE SHAFT SHIELD
|
1 |
41.05
Each
|
|
| 6 | 500-0106521 |
TAKE UP BEARING 1"
|
2 |
25.72
Each
|
|
| 7 | 500-0151951 |
S5, S6&8 FRONT ROLLER
|
1 |
287.29
Each
|
|
| 8 | 500-0227431 |
WING NUT 3/8" NC SS
|
1 |
40.59
Each
|
|
| 10 | 500-0102701 |
*1/2" X 5" SS TAKE UP BOLT
|
2 |
7.72
Each
|
|
| 11 | 009-3000071 |
DRAG CHAIN SS 7" 304 SS PR FT
|
21 |
52.10
FOOT
|
|
| 12 | 500-0105131 |
SPLICE PIN W/NUT 7"
|
1 |
28.99
Each
|
|
| 13 | 500-0211931 |
REAR GATE S500/S600/S800
|
1 |
240.00
Each
|
|
| 14 | 500-0148551 |
ASSY METERING SHAFT
|
1 |
416.35
Each
|
|
| 15 | 500-0104642 |
V-IDLER SHEAVE 6 1/2" - AGCO
|
1 |
42.86
Each
|
|
| 16 | 500-0106541 |
JOURNAL BEARING 3/4"
|
1 |
35.09
Each
|
|
| 17 | 500-0165971 |
REAR DRIVE ROLLER
|
1 |
305.66
Each
|
|
| 18 | 500-0165481 |
BUSHING HARDWOOD
|
1 |
18.69
Each
|
|
| 19 | 500-0123631 |
SPROCKET 30/40T AGCO
|
1 |
159.24
Each
|
|
| 20 | 500-0104541 |
SHEAVE 8" - DON DYE
|
1 |
17.73
Each
|
|
| 21 | 500-0173321 |
VINYL GRIP
|
1 |
2.17
Each
|
|
| 22 | 500-0173171 |
RUBBER GRIP
|
1 |
7.95
Each
|
|
| 25 | 500-0104872 |
V-BELT CONTINENTAL BB-112
|
1 |
87.83
Each
|
|
| 26 | 506-5000002 |
CHAIN ROLLER SS #2050 PER FT
|
4 |
16.02
FOOT
|
|
| 26 | 506-5000026 |
2050 SS CONNECTOR LINK
|
1 |
5.61
Each
|
|
| 27 | 506-3200006 |
CHAIN ROLLER SS #50 PER FT
|
8 |
18.27
FOOT
|
|
| 28 | 500-0152441 |
OUTER MUD SHIELD
|
1 |
90.38
Each
|
|
| 29 | 500-0152461 |
S6&8 ENGAGING ARM
|
1 |
569.00
Each
|
|
| 30 | 500-0152511 |
ENGAGING LEVER
|
1 |
89.92
Each
|
|
| 33 | 500-0166171 |
*GR DR SPRING
|
1 |
8.99
Each
|
|
| 76 | 500-0215401 |
S6&8 LINE SHAFT 1" X 167"
|
1 |
665.47
Each
|
|
| 31, 51, 53 | 500-0214251 |
BUSHING NYLON
|
6 |
7.09
Each
|
|
| 32 | 500-0150951 |
GR DR LINKAGE
|
1 |
23.72
Each
|
|
| 34 | 500-0104612 |
BB IDLER 4 1/2" - AGCO
|
1 |
38.92
Each
|
|
| 35 | 500-0152451 |
S6&8 GR DR JACK SHAFT
|
1 |
121.68
Each
|
|
| 36 | 500-0106641 |
SLIP CLUTCH HUB
|
1 |
167.17
Each
|
|
| 37 | 500-0106671 |
SLIP CLUTCH JAW
|
1 |
51.10
Each
|
|
| 39 | 500-0106661 |
SLIP CLUTCH SPROCKET RC50 54T
|
1 |
146.00
Each
|
|
| 40 | 500-0106691 |
RATCHET SLIP CLUTCH SPRING
|
1 |
53.94
Each
|
|
| 41 | 500-0106681 |
SLIP CLUTCH NUT
|
1 |
38.14
Each
|
|
| 36-41 | 500-0106631 |
RATCHET SLIP CLUTCH COMPLETE
|
1 |
323.42
Each
|
|
| 5 | 500-0240621 |
S6&8 FRONT LINE SHAFT 1" X 50"
|
1 |
506.99
Each
|
|
| 42 | 500-0123681 |
SPROCKET 13/24T
|
1 |
90.87
Each
|
|
| 43 | 500-0165841 |
DISTRIBUTOR FAN
|
2 |
252.93
Each
|
|
| 44 | 500-0152221 |
DISTRIBUTOR MOUNT
|
2 |
64.97
Each
|
|
| 45 | 500-0165831 |
DIST BLADE RH
|
4 |
27.99
Each
|
|
| 46 | 500-0165951 |
DIST BLADE LH
|
4 |
27.99
Each
|
|
| 45-46 | 500-0152261 |
SS DIST BLADE KIT
|
1 |
209.95
Each
|
|
| 47 | 500-0106451 |
1" 3 HOLE FLG BEARING
|
4 |
19.90
Each
|
|
| 48 | 500-0136375 |
SHEAVE 6.25" - DON DYE
|
2 |
13.33
Each
|
|
| 49 | 500-0104491 |
SET COLLAR 1"
|
1 |
2.01
Each
|
|
| 50 | 500-0104481 |
SET COLLAR 3/4" I.D.
|
1 |
2.92
Each
|
|
| 52 | 500-0211721 |
GR DR CLUTCH
|
1 |
407.56
Each
|
|
| 54 | 500-0336721 |
CLUTCH LEVER
|
1 |
210.44
Each
|
|
| 55 | 500-0340061 |
CONTROL ARM
|
1 |
251.00
Each
|
|
| 56 | 500-0149121 |
REAR STRAP
|
1 |
22.28
Each
|
|
| 57 | 500-0427881 |
*5/8"-18 NYLON LOCKNUT
|
1 |
2.89
Each
|
|
| 58 | 500-0143231 |
SPACER
|
1 |
29.99
Each
|
|
| 59 | 500-0143691 |
*EXTENSION SPRING
|
1 |
3.59
Each
|
|
| 60 | 500-0149331 |
ANGLE BRACKET
|
1 |
31.97
Each
|
|
| 61 | 500-0191991 |
FRONT GUIDE STRAP
|
1 |
107.00
Each
|
|
| 64 | 500-0149101 |
TRIP LUG
|
1 |
15.82
Each
|
|
| 67 | 500-0188991 |
COIL TORSION SPRING LH
|
1 |
29.62
Each
|
|
