Home  >  SPRAYER COMPONENTS  >  MULTIPLE NOZZLE BODY-DRY BOOM  > 1" WET BOOM 3 OUTLET NOZZLE BODY W/ FERTILIZER OUTLET

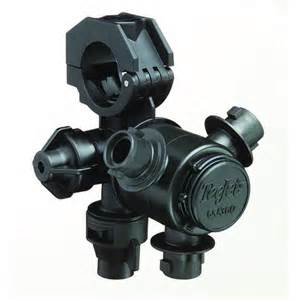

1" WET BOOM 3 OUTLET NOZZLE BODY W/ FERTILIZER OUTLET

Item #: 044-3631010
Manufacturer Item: QJ363F-1-NYB
Manufacturer: TEEJET
Min. Order Qty: 1
12.19
Each
Quantity:
Item #:
044-0219538
0.29
Each
Item #:
044-0198436
1.41
Each

Features:

Single fertilizer nozzle outlet with shutoff cap and either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing
Positive shutoff between each position
Automatic self-alignment with flat fan spray patterns
Flow Rate: pressure drop of 5 PSI (0.34 bar) for 2.25 GPM (8.5 l/min) through turret and 3.4 GPM (12.9 l/min) through fertilizer outlet
Flow Rate: pressure drop of 10 PSI (0.69 bar) for 3.18 GPM (12.0 l/min) through turret and 4.8 GPM (18.2 l/min) through fertilizer outlet
Maximum pressure of 300 PSI (20 bar)
Available in 1" single or double hose shanks
Includes ChemSaver diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI (0.7 bar)
Standard O-Rings and Diaphragm made of EPDM and Buna, Viton optional
Molded hex socket in the upper clamp for attaching to flat surfaces (does not use dry boom clamp). Accepts 5/16" or M8 bolt
Also available with optional 56720 Air ChemSaver or 55280 e-ChemSaver shutoff valves.
Hinged upper clamp reduces assembly time and fits inside common boom channels

Details:
Number of Spray Outlets: 3
To Clamp On: 1" Pipe
Diaphragm: EPDM

NOZZLE BODIES

OUTLETS
3
SIZE
1"
