Home  >  PUMPS  >  TRANSFER  >  PEDESTAL  > PUMP 3" SCOT FPD515 CAST IRON

PUMP 3" SCOT FPD515 CAST IRON 7/8" SHAFT CENTRIFUGAL3152K005

Item #:042-0515333
Manufacturer Item: 3152K005
Manufacturer: SCOT
1245.41
Each
Quantity:
042-0515333

PEDESTAL

SHAFT
7/8"
SIZE
3"
MATERIAL
IRON
050-5020004
Item #:
050-5020004
341.96
Each
031-1510030
Item #:
031-1510030
2393.69
Each
004-3603040
Item #:
004-3603040
37.82
Each
Enter the quantity for each needed part and click add to cart

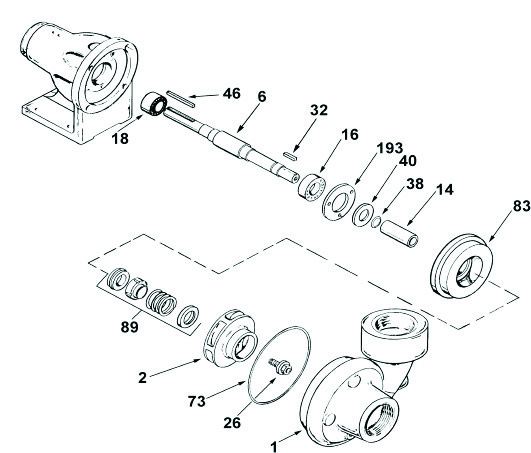

No. Part No. Item Description Qty Req. Price Qty
1 042-1302242
CASING PSP-303 130-224
1
851.31
Each
2 042-0002864
IMPELLER IRON 5.38" DIAMETER
1
252.86
Each
6 042-1351868
135.186 SHAFT FPD 515V
1
416.06
Each
26* 042-1181117
IMPELLER BOLT ASSY
1
11.25
Each
38* 042-1161931
SHAFT O-RING
1
11.26
Each
40* 042-1041078
FLINGER 104.000.107
1
5.20
Each
73* 042-1161508
116.150 VITON CASING O-RING
1
21.79
Each
83* 042-1321837
BACK PLATE
1
280.06
Each
16 042-1031463
PUMP END BEARING
1
35.26
Each
18 042-1031504
SHAFT END BEARING
1
145.07
Each
89 042-0001942
CERAMIC SEAL
1
141.04
Each
32* 042-1021026
3/16" X 1" KEY 102-102
1
5.20
Each
193 042-1102442
BEARING RETAINER
1
30.22
Each
042-1183521
REPAIR KIT
1
242.78
Each
14* 042-0001870
SLEEVE SHAFT 135-187
1
102.75
Each
Enter the quantity for each needed part and click add to cart
