Home  >  ROW EQUIPMENT  >  COULTERS  > COULTR COMPL ASSY 24"

COULTR COMPL ASSY 24" KSC-466370

Item #:032-0466370
Manufacturer Item: KSC-466370
Manufacturer: SHIELD
632.89
Each
Quantity:
032-0466370
032-2017824
Item #:

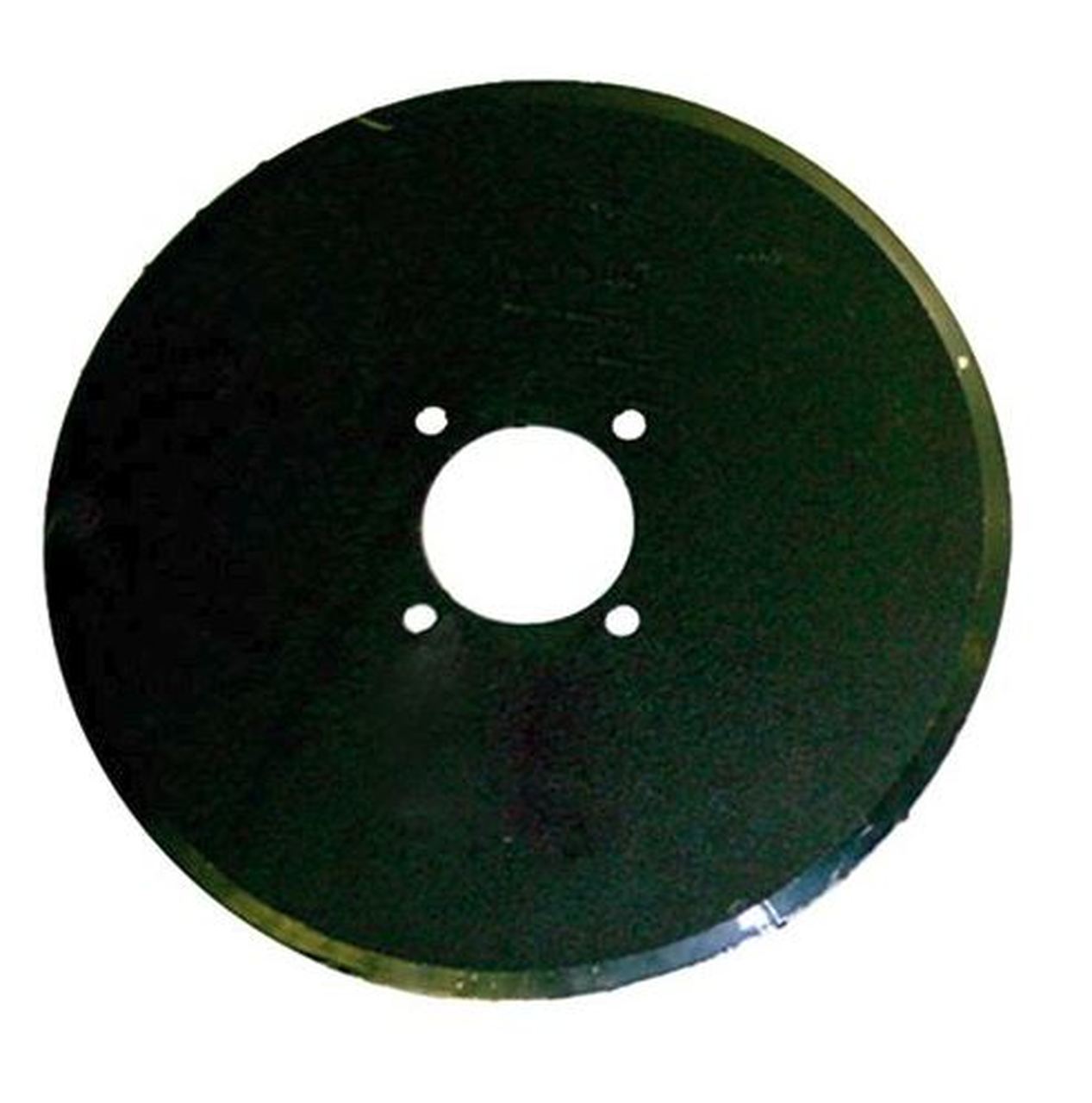

032-2017824
90.58
Each
032-0466305
Item #:
032-0466305
213.20
Each
Enter the quantity for each needed part and click add to cart

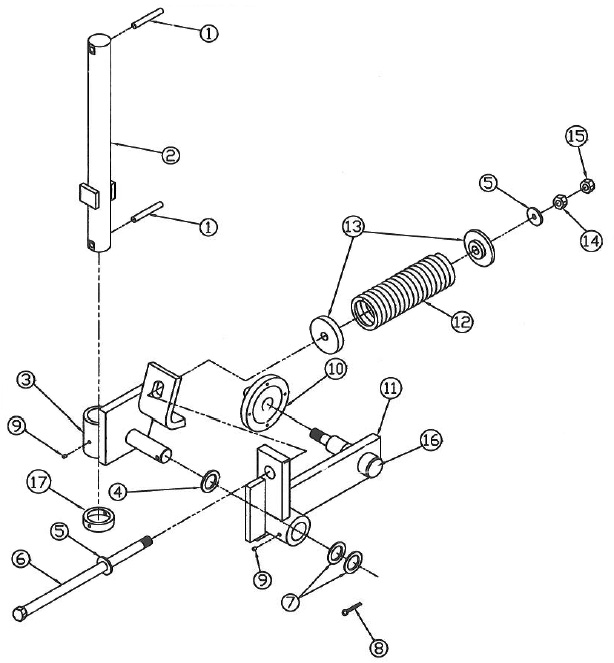

No. Part No. Item Description Qty Req. Price Qty
1 032-0466716
ROLL PIN FOR DMI COULTER
2
2.94
Each
2 032-0466315
DMI SHANK 20" X 24"
1
124.25
Each
3 032-0466320
DMI COULTER PIVOT ASSY
1
138.80
Each
4 032-0466310
MACHINE BUSHING 10 GA
1
3.01
Each
5 034-0030331
WASHER FLAT 3/4"
2
1.43
Each
6 032-0012418
3/4" x 14" BOLT FOR SPRING
1
31.48
Each
7 032-0466314
MACHINE BUSHING 14 GA
2
2.10
Each
10 032-0466300
DMI HUB ASSY
1
112.63
Each
10 032-2550294
RACE LM67010
0
3.71
Each
10 032-8182600
RACE LM11910
0
2.07
Each
10 032-2550270
BEARING LM67048
0
6.30
Each
10 032-8182507
BEARING LM11949
0
4.57
Each
10 032-0906296
DMI HUB SEAL
0
5.93
Each
10 032-0913608
WASHER SPINDLE
0
0.62
Each
10 032-0912953
SPINDLE CASTLE NUT
0
2.33
Each
11 032-0466305
COULTER ARM 24"
1
213.20
Each
12 032-0466308
DMI SPRING
1
69.93
Each
13 032-0012444
SPRING CAP WLDMT
2
22.97
Each
14 034-0030341
HEX NUT 3/4"
1
1.01
Each
15 032-0012407
3/4" JAM NUT FOR SPRGLOAD BRKT
1
0.69
Each
16 032-1466300
DMI SPINDLE
1
64.16
Each
17 032-4660315
DMI SHAFT COLLAR
1
14.68
Each
Enter the quantity for each needed part and click add to cart
